in our database
| Description | BushingØ [mm] | Cross width [mm] | Offset | Lubrication type | Model series | Brand | Order No. | |
|---|---|---|---|---|---|---|---|---|
|

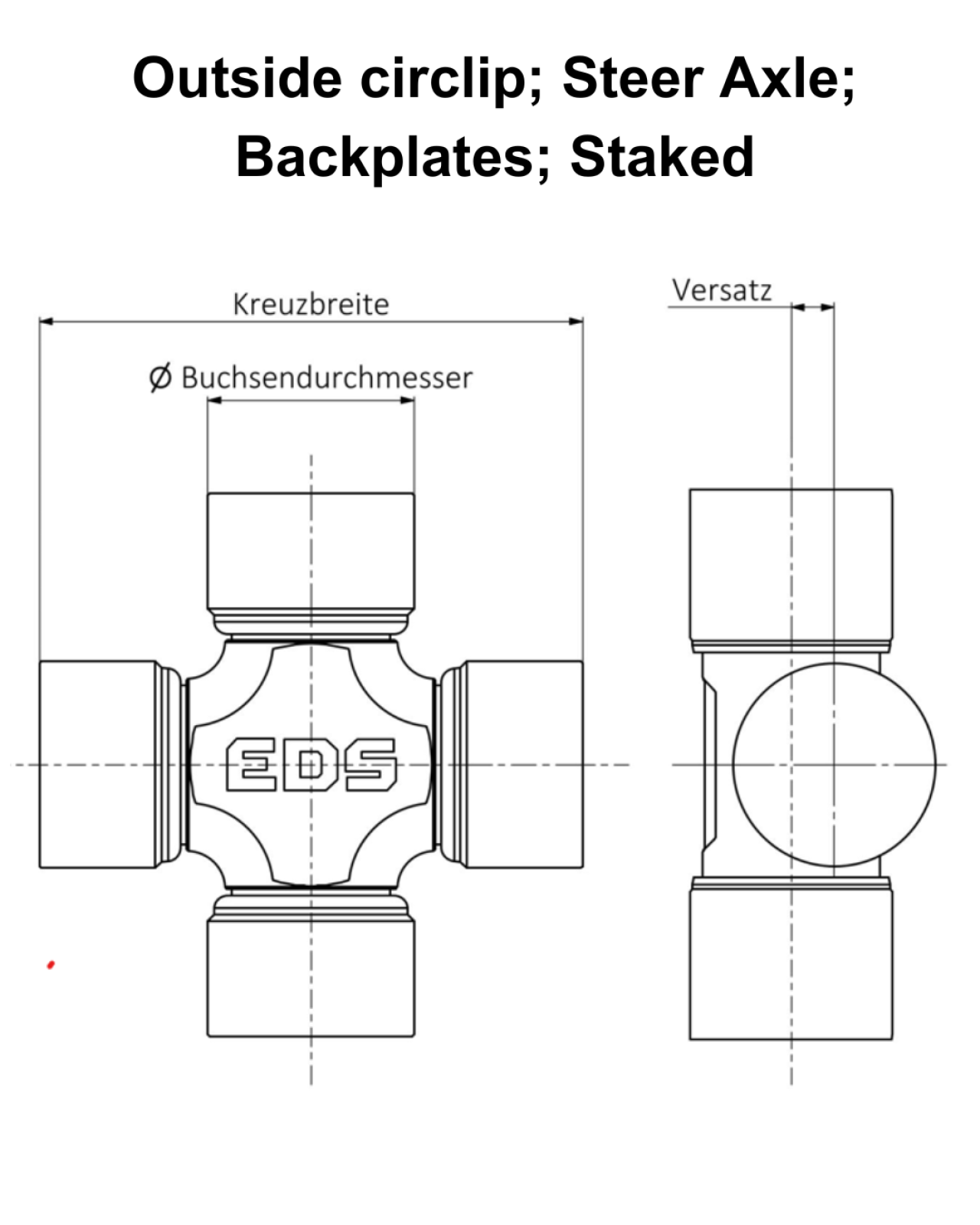

outside circlip | 36.00 | 110.30 | 0 | 7 | EDS | 00023971-GE | |
|
backplates/straps | 47.00 | 144.00 | 0 | 5 | EDS | 00024649-GE | |
|
backplates/straps | 45.98 | 136.00 | 0 | 5 | 71145 | EDS | 00024865-GE |
|
outside circlip | 52.00 | 147.20 | 0 | 5 | 68745 | EDS PLUS | 00024890-GE |
|
outside circlip | 47.60 | 135.20 | 0 | 5 | 68740 | EDS PLUS | 00024891-GE |
|
outside circlip | 59.00 | 167.70 | 0 | 0 | 68760 | EDS PLUS | 00024892-GE |
|
outside circlip | 52.00 | 147.20 | 0 | 0 | 68745 | EDS PLUS | 00024893-GE |
|
outside circlip | 42.00 | 119.40 | 0 | 0 | 68735 | EDS PLUS | 00024895-GE |
|
outside circlip | 57.00 | 152.00 | 0 | 0 | 68755 | EDS PLUS | 00024896-GE |
|
outside circlip | 59.00 | 167.70 | 0 | 5 | 68760 | EDS PLUS | 00024898-GE |
Legend (Type of Lubrication):
0 = service free
1 = 1 x Lub in cup
2 = 2 x Lub in cup
3 = 4 x Lub in cup + Lateral grease nipple
4 = 4 x Lub in cup
5 = Central grease nipple
6 = Holes in bearing
7 = Lateral grease nipple
8 = 1 x Lub in cup + Central grease nipple
9 = 4 x Lub in cup + Central grease nipple
10 = Holes in bearing + Lateral grease nipple
11 = 2 x Lub in cup + Central grease nipple
12 = 1 x Lub in cup + Lateral grease nipple
13 = Central grease nipple + Holes in bearing
14 = Lateral grease nipple + Grease nipple 45°
